Calcium Silicate Board–Medium Density Ceiling, Partition Fiber Cement Wall Panel

Modell Nr.

Olar Fiber Reinforced Calcium Silicate Board

Größe

1220*2440*4.5, 5, 6, 8, 9, 10, 12, 15mm or More

Dicke

4.5, 5, 6, 8, 9, 10, 12, 15mm or More

Density

Medium

Surface Treatment

Roller Coating

Anwendung

Public, Household, Office, Hotel, Dust Free Room

Sizes

1220*2440*4.5, 5, 6, 8, 9, 10, 12, 15mm or More

Materialien

Cement, Wood Fiber, Quartz and So on

Surface

Un-Sanded / Sanded / Polished

Delivery Schedule

with Stock and Can Be in 5 Days After Full Payment

Warenzeichen

Olar Fiber Cement Board

Transportpaket

Wooden Pallets or Without Pallets

Spezifikation

CE EN 12467:2012, In-combustible A1, ISO9001:2008

Herkunft

Foshan, Guangdong, China

HS-Code

6811820000

Kategorien: Kalziumsilikatdecke, Decke

Beschreibung

Beschreibung

Why choose OLAR CSB

The products of Olar have taken 90% domestic market share. What is more, they have been delivered in large quantily to many European countries like Italy, Sweden, Norway, Russia, UK, Spanien, Poland and many other countries in Southeast Asia and Middle East.

In recent years we have set up close cooperation relationship with our customers inAustralien, New Zealand, South Ameria, USA and Canada.

The reliable quality and reasonable price of the products have earned us recognition and well favor from the customers in both domestic and overseas market.

1.Detailed description:
Model name : Medium density calcium silicate board
It is 100% Non-asbestos, which is made by cellulose, sand, cement, mica and others material.

a. Quality Inspection:

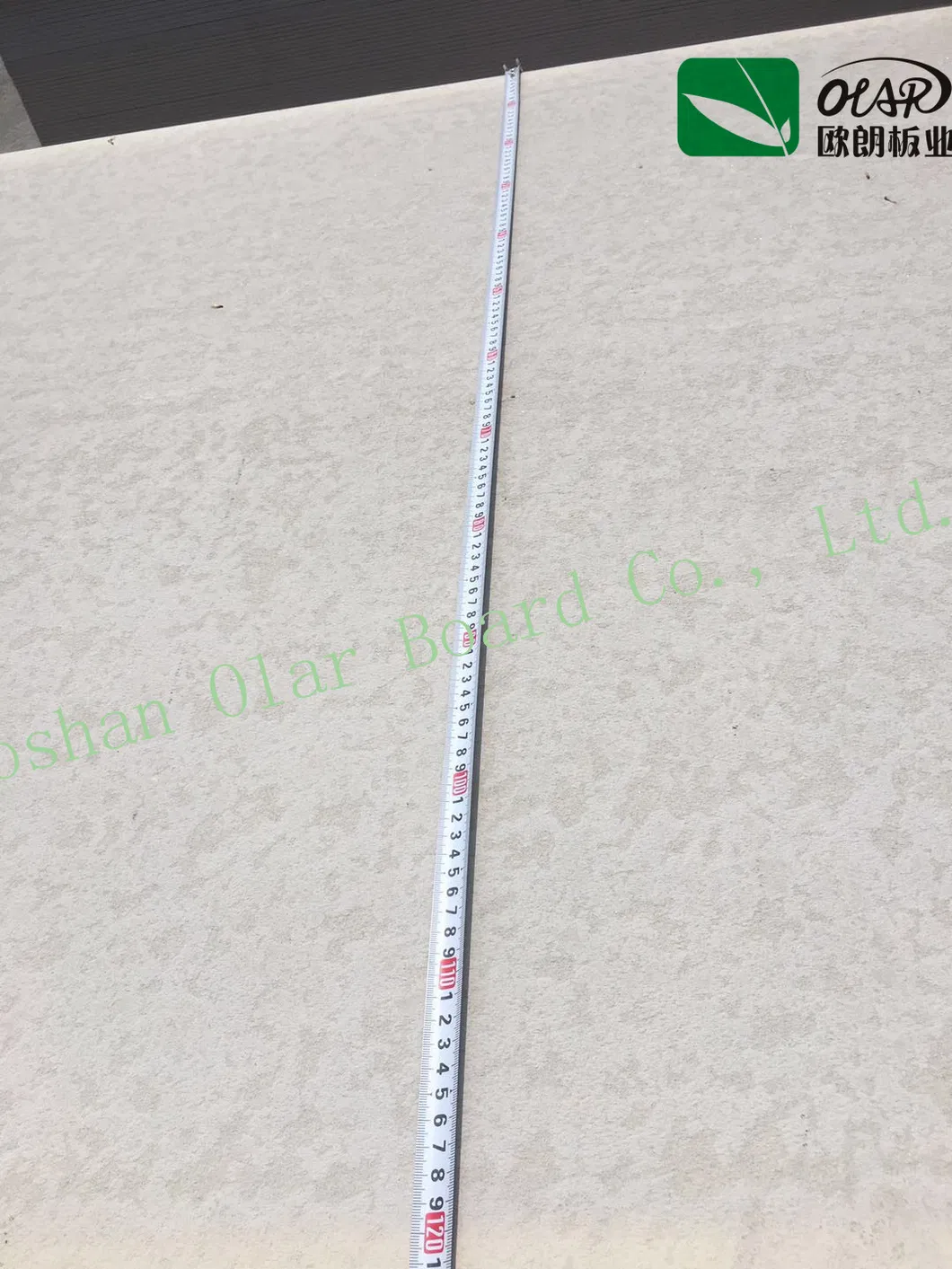

Smooth Surface

Calcium Silicate Board--Medium Density Ceiling, Partition Fiber Cement Wall Panel

Normal Surface:

12mm: +/-0.2mm tolerance

Backside looking:

b. Characteristics:

1.Light weight with medium density;

2.Good fireproof;
3.Thermal insulation;

4.Fire – resistant ( limit reaches 1h or more, if it is on fire, produces no smoke);

5.Moisture-proof;

6.Shockproof;

7.Anti- insects and rodents;

8.Easily constructed;

9.Long lifespan ( can reach 50 years or more);

10.Sound insulates ( against sounds of up to and over 40dB);
11.Incombustibility;

c. Anwendung:
4.5-6MM is used for the ceiling of the building.

8, 9, 10, 12, 15mm is used for partition.

15-18mm can be used for internal floor backer with some designed steel structure under special application.

Ceilings and wall panel of the building,such as office buildings, residential buildings, commercial buildings, schools, airports, railway stations, research institutions, cinemas, hospitals, gyms and KTV rooms, etc.

d. Technical Specification (please refer to follow form)

Medium density fiber reinforced calcium silicate board
Spezifikation	Standard Specification: 1220/12002440/2400/30004.5~15MM
	Tolerance: Length/Width:±3mm; Dicke:±0.3mm; Edge Squareness :≤3mm/m; Diagonal Difference:≤4mm
Appearance	Surface:Un-sanded / Sanded / Polished
	Edge:Square / Recessed
Physical Properties	Density: 1000~1200KG/M 3
	Bending Strength(DRY) : Cross: 9~11MPa; Parallel: 5~7MPa
	Moisture Movement: ≤ 0.25%
	Water Absorption: ≤ 42%
	Moisture Content: ≤ 10%(Under EMS condition)
	Thermal Conductivity: ≤0.22w/(m*k)
	Non-combustibility: GB 8624-2006 Grade A1, BS 476-4 Grade A
Excellent Characteristics	In-combustibility, High Bending Strength, Thermal Insulation, Fire Resistant, Sound Insulation, Moisture-proof, Shock Resistant, Durability, Long service life, etc.
Anwendung	4.5~6mm: for Interior Ceiling; 6~9mm: Fire Door Core; 8~15mm: for in Interior Partition.
Products Warranty	More than 20 Jahre

2.Our certificate:

3.Paket:
1.Held by wooden Pallet or without Pallet;

2.Bonded with plastic belts;

3.Fasten around the corners;

4.Trade term:

1. Zahlung: T/T or L/C at sight;

2 .Lead time: 25-30 Working days;

3. Shipping freight are quoted under your requests;

4. Shipping port: Foshan (Jiujiang or Gaoming ) port, Festlandchina;

5. Discount: based on the order quantity;

5.Contact information:
Contact person:
Christina Lee (Export Manager )

6.Firmenprofil :

Foshan Olar board Co.,Ltd. is a manufacturer .It is established in 2005,located in the southern side of He’he Avenue, Mingcheng, Gaoming, Foshan , Guangdong, China.
The products of Olar have taken 90% domestic market share. What is more, they have been delivered in large quantily to many European countries like Italy, Sweden, Norway, Russia, UK, Spanien, Poland and many other countries in Southeast Asia and Middle East.

Any questions , pls feel free to contact us at any time .

7. Packing and Loading:

8. Projects Reference:
