Vertical CNC Machine Center Vmc1160 CNC Milling Machine
Modell Nr.
VMC1160
Numerische Steuerung
CNC/MNC
Präzision in der Verarbeitung
0.01~0,02(mm)
Leistungsklassifizierung
Economical CNC Machine Tools
Zertifizierung
CE, RoHS, ISO 9001
Zustand
Neu

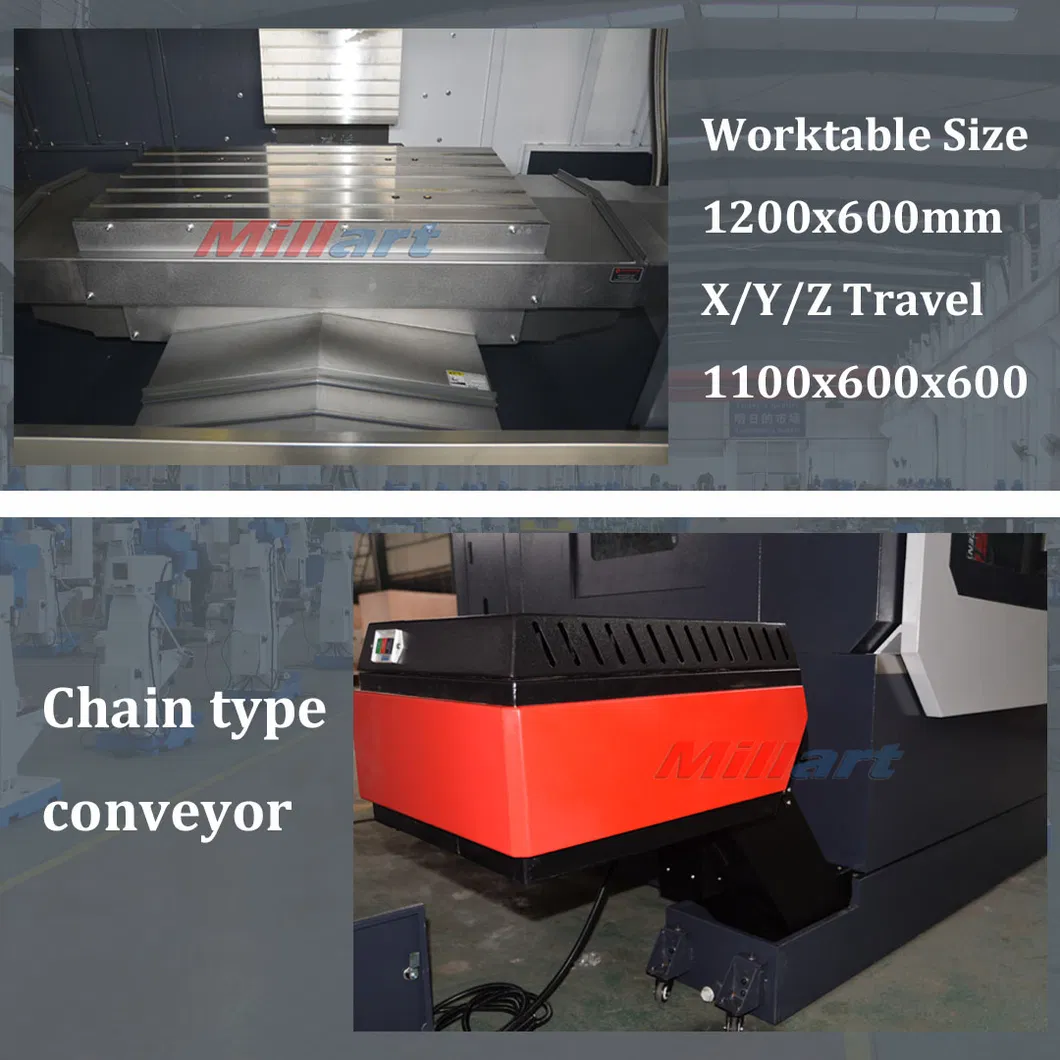

Worktable Size
1200X600 mm
X/Y/Z Travel
1100/600/600 mm
Spindle Taper
Bt40
Main Motor Power
7.5/11 Kw
Warenzeichen
L&T
Transportpaket
Wood Case
Spezifikation
CE ISO9001 RoHS
Herkunft
Tengzhou China
HS-Code
8457101000
Beschreibung
Vertical CNC Machine Center VMC1160 CNC Milling Machine
Main configuration & accessories:1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:
| Artikel | Einheit | VMC1160 |
| Kapazität | ||
| X axis travel | mm | 1100 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Spindle nose to worktable | mm | 120-720 |
| Spindle center to column | mm | 650 |
| Leadscrew size | ||
| Leadscrew diameter | mm | Φ40 |
| Linear guideway width | mm | 45/45/45 |
| Worktable size | ||
| Worktable Length | mm | 1200 |
| Worktable width | mm | 600 |
| Max loading capacity | kg | 800 |
| Spindle | ||
| Spindle speed | rpm | 8000 |
| Main motor power | kw | 7.5/11 |
| Spindelkegel | BT40 | |
| Feeding system | ||
| Fast moving speed (X/Y/Z) | m/Min | 36/36/36 |
| Cutting speed | mm/min | 1-10000 |
| Feed motor power | kw | 3/3/4.5 |
| Tool Magazine | ||
| Kapazität | Stck | Arm 24 |
| Max tool diameter | mm | 120 |
| Max tool weight | kg | 8 |
| Max tool length | mm | 300 |
| Genauigkeit | ||
| Positioning accuracy | mm | 0.008 |
| Repeat accuracy | mm | 0.005 |
| Machine dimensions | ||
| Länge | mm | 3300 |
| Breite | mm | 2400 |
| Height | mm | 2800 |
| Gewicht | kg | 6900 |
Standardzubehör:
| Fanuc 0i TF control system | Automatic lubrication |
| Taiwan Spindle: 8000rpm | Coolant system, |
| X/Y/Z axes: Fanuc servo drive motor | Work lamp, |
| Main motor: Fanuc spindle motor | Tri-color indication lamp |
| 24 tools Umbrella type | Air gun |
| USB for information transfer | Heat exchanger in cabinet |
| Rough cutting of thread | 3-Axis linear guideway from Taiwan Hiwin |
| Full closed cover | Ball leadscrew from taiwan Hiwin |
Optional accessories:
| Automatic chip conveyor & chip bucket (Chain type) | Automatic chip conveyor & chip bucket (Screw type) |
| Spindle direct driven, Geschwindigkeit 12000 rpm | Spindle oil cooling |
| Spindle center water spray | Nitrogen balance cylinder |
| Air conditioner for electricity cabinet | 4th Axis or 5th Axis |
