Vmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine Price

Model NO.
VMC1160

Performance Classification
Economical CNC Machine Tools

Certification
CE, RoHS, ISO 9001

Condition
New

Table Size
1200*600mm

X/Y/Z Axis Travel
1100*600*600mm

Trademark
WELLON

Transport Package
Wooden Case

Specification
CE ISO9001

Origin
Shandong Tengzhou

HS Code
8459619000

Categories: ,

Description

Products Description:
Vmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine PriceVmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine PriceVmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine PriceVmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine PriceVmc1160 4th Axis 5th Axis CNC Vertical Machining Center CNC Milling Machine Price
Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;

ModelVMC1160
Table size1200*600 mm
X axis travel1100mm
Y axis travel600mm
Z axis travel600mm
Max. table load800kg
T slot qty-width*distance5-18*100mm
Max.spindle speed8000rpm
Spindle nose to table surface120–720mm
Spindle axis to column surface670 mm
Max. diameter of drilling40mm
Max. ThreadingM20
Spindle taperBT40
Main motor power11kw
Feeding rate0-10000mm/min
X/Y/Z axis motor power3/3/4.5 kw
X/Y/Z axis rapid feed36/36/32 m/min
Tool changer typeDisc type
Tools capacity24
Tool change time1.8 sec
Max. tool length150mm
Max. Tool diameterΦ100
Max.tool(kinfe) weight3kg
Positioning accuracy X/Z±0.008mm
Repeat positioning accuracy X/Z±0.005mm
Net Weight7500kg
Overall Dimension2980*2450*2800mm

Standard Accessories:
Fanuc 0i-MF CNC control system,
High speed spindle 8000 rpm from Taiwan ,

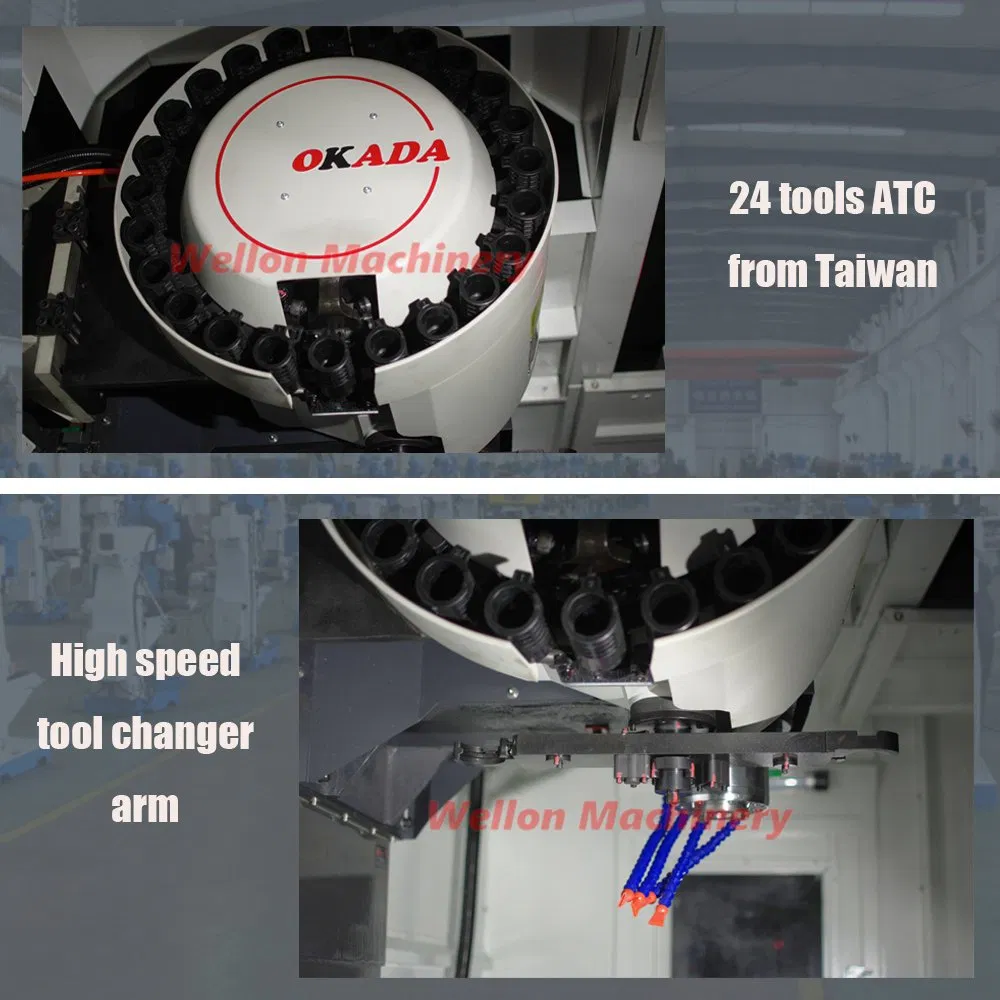

24 tools ATC from Taiwan,
3-Axis linear guideway from Taiwan,
Full-cover protection,
Work lamp,
Tri-color indication lamp,
Coolant system,
Auto-lubrication,
Movable pulse generator,
Air gun,
Heat exchanger
